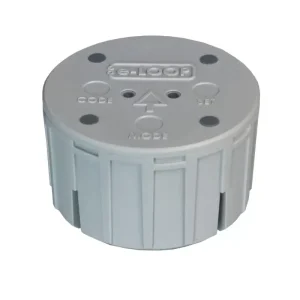

AES E-Loop In-Ground Commercial Radar loop only PRESENCE MODE – EL00IG-RAD

Extra Specification & Feature Information

AES E-Loop In-Ground Commercial Radar loop only PRESENCE MODE – EL00IG-RAD

This commercial radar e-loop made for presence mode  is an inground wireless vehicle detection system that utilizes magnetometer sensors to detect vehicle movements. When a vehicle is detected, the information is transmitted to a transceiver for gate activation. This sensor is installed near the entry of a gate or passageway using Sikaflex. This system has a replaceable Lithium battery and can handle any vehicle weight. Gates and door controllers must have an open input and auto close function enabled. The radar sensor works to detect vehicles that are stopped on top of the e-loop. Using radar and magnetometer sensors, the vehicle radar loop can sense a vehicle even if the magnetic field drops. Change radar settings with the e-diagnostics remote.

Key Features:

Easy Installation
Set Radar Settings Including Dead Zones, Sensitivity, And Magnetic Field Release Levels
6-Year Battery Life
Reliable Radio Communications With Transceivers
High Security 128-Bit AES Encryption
Exit Detection Mode
8 Hz Sampling Rate
Auto Calibration
IP68 Ingress Protection

Specifications:

Frequency: 433.39 MHz
Modulation: FSK
Bitrate: 9.6 KBPS
Bandwidth: 250 kHz
Antenna Type: PCB
Nominal Output Power: 10 dBm
Receive Sensitivity: -126.2 dBm
Security: 128-Bit AES Encryption
Power: 4 * 3.6 V 2700ma
Operating Temp: -4°F To 176°F
